UAS4G5G LTE · HARDWARE

Built for Radxa.

ROCK 4D and ZERO 3W/3E bring hardware H.264 and H.265 processing to the same flight workspace.

THE CONNECTED FLIGHT PLATFORMv23Raspberry Pi
Radxa ROCK 4D
Radxa ZERO 3W / 3E
01

The supported Radxa range

BoardImageConnectivity distinction
ROCK 4DDedicated ROCK 4D imageUse its board-specific USB and Ethernet connections
ZERO 3WZERO 3W/3E imageCompact board with built-in Wi-Fi
ZERO 3EZERO 3W/3E imageEthernet variant; do not expect a built-in Wi-Fi hotspot

Use the image for your board family even when the dashboard looks identical. The USB connection and reconnect handling for Pocket cameras are adapted to each platform.

02

Video processing

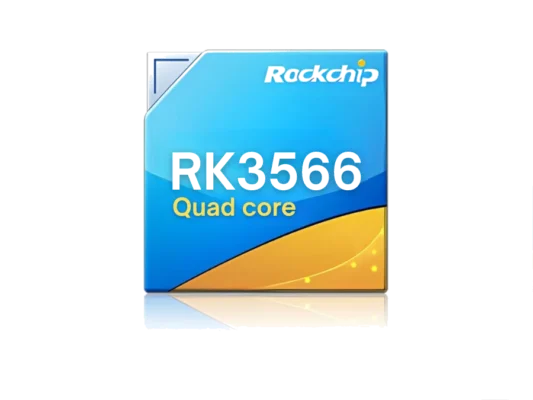

The supported Radxa configurations use Rockchip hardware encoding for H.264 and H.265. Pocket video is decoded and encoded through the hardware pipeline, with hardware scaling when the selected output differs from the camera source.

DJI Pocket 1 supplies a 1920 × 1080 live source; DJI Pocket 2 supplies 1280 × 720. DJI Pocket 2’s stream menu stops at its native 720p rather than enlarging it to 1080p. Both codecs offer intermediate resolutions, including 630p and 540p, for a practical quality and bandwidth choice.

03

Cameras and USB roles

Two general USB camera channels are available where the physical ports and USB topology permit them. The shared dashboard may contain controls for inputs intended for other hardware; a visible tab is not proof that the connector exists on your board.

04

Cockpit and dedicated camera tabs

Use Cockpit for the combined video, HUD and map workspace. Its shared first-USB-camera controls operate the same stream as USB Camera-1. The dedicated camera tab additionally lets you configure its destination IP and UDP port.

USB Camera-2 is independent: configure its settings and destination in its own tab. It can supply the local Cockpit receiver when deliberately routed there, but its controls still belong to the second camera. Pocket cameras retain their own live view, gimbal controls and stream settings.

Camera controls, flight modes, MAVLink destinations, modem settings, VPN management and signed updates follow the same operating principles across ROCK 4D and ZERO 3W/3E. Choose the correct image and physical connection for the board.

Program screenshotFull resolution ↗
