Three image families
Match the board to the camera
| Platform | General USB camera | DJI Pocket 1 / DJI Pocket 2 | Video approach |
|---|---|---|---|
| Pi Zero 2 W / Pi 3 | Not offered by this program on these models | Use the supported Pi 4 / Pi 5 workflow | Single compatible CSI source; H.264 |
| Raspberry Pi 4 | One USB camera channel | Supported; H.264 | Hardware H.264 encoding; decoding where supported |
| Raspberry Pi 5 | One USB camera channel | H.264 and limited-resolution H.265 | Software encoding; resolution and workload matter |
| ROCK 4D / ZERO 3W / 3E | Two USB camera channels where ports permit | H.264 and H.265 | Rockchip hardware video pipeline |
Plan the physical connections
Allow a suitable USB role and port for a Pocket camera, a connection for the flight controller and sufficient connectivity for the modem. Available connectors and USB bandwidth limit what you can use simultaneously. A hub cannot change a host-only port into the device-role connection required by the Pocket workflow.
Raspberry Pi boards

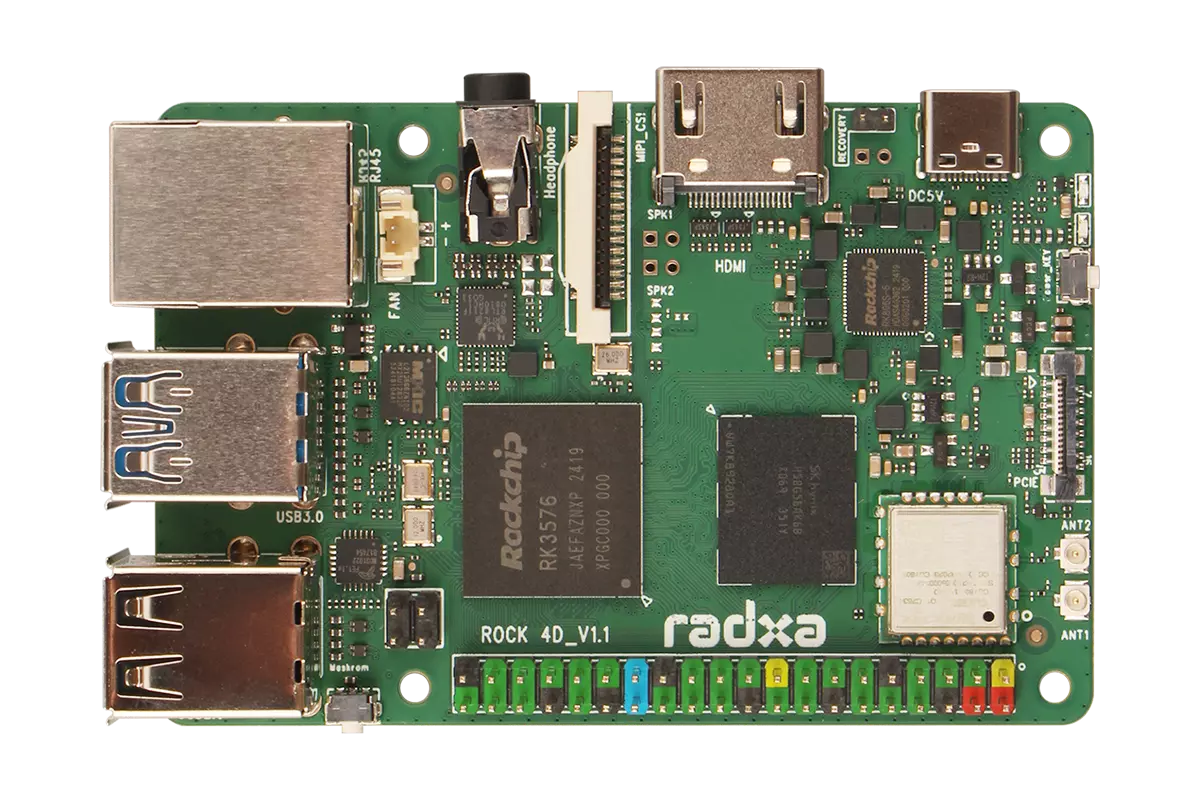

Radxa ROCK 4D
Radxa ZERO 3W / 3E
